High performance with compact dimensions and universal application

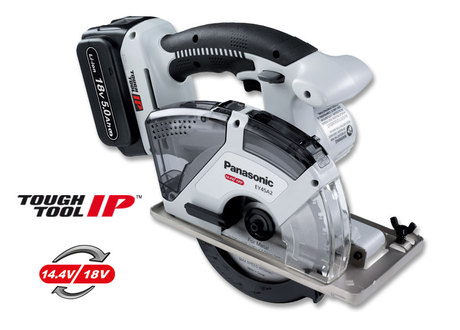

EY45A2 Multi Purpose Cutter features a well balanced, lightweight and compact body that gives high performance cutting of multiple materials such as wood, metals and plastic.
New arrivals
RIPZĀĢIS EY45A2LJ2G / EY45A2XM / EY45A2XW
600 EUR ADD TO SHOPPING CART
Press EY45a2

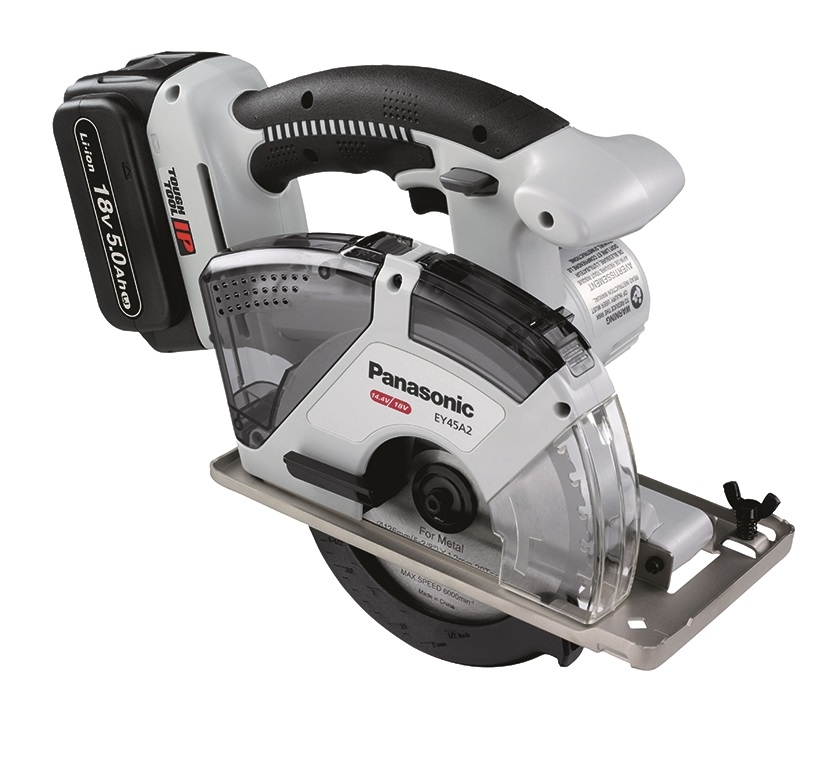

Cordless Multi Purpose Cutter
- New high-performance 5.0Ah Li-ion battery pack*
- 65min. usable and 80min. full charging
- Light weight 2.8kg (incl. battery)*
- Standard accessory (Blade for metal or wood)
- For metal, plastic and wood
- Transparent window for easy to see the cutting edge
- Electric speed control
- 3-way dust control system
- Ergonomic design
- Soft grip
- LED light
- Second battery pack*
| Model / Type | EY45A2LJ2G | EY45A2XM | EY45A2 XW |
|---|---|---|---|
| Voltage | 18V | 18V / 14.4V | 18V / 14.4V |
| Battery capacity accord. to IEC (technology) | 5.0Ah (Li-ion) | * | * |
| Charging time (usable / full) | 65 / 80min. | * | * |
| Speed at no load in rpm | 4.500 | * | * |
| Max. cutting depth | 46mm | * | * |
| Stroke | - | - | - |
| Blade size (outer diameter) | 135mm | * | * |
| Size (W x L x B) | 160 x 343 x 228mm | * | * |
| Weight (incl. battery) | 2.75kg | * | * |
| Standard accessories | 2 x battery EY9L54B Charger EY0L82B Blade for metal EY9PM13E incl. plastic box |
without battery without charger Blade for metal EY9PM13E without plastic box |
without battery without charger Blade for wood EY9PW13C without plastic box |
* XM-type (EY45A2XM) without battery and charger.
| Battery capacities | |||
|---|---|---|---|
| Voltage | 18V | 14.4V | |
| Model | EY45A2LJ2G | - | |
| Battery | EY9L54B(LJ) | - | |
| Blade for metal (EY9PM13E) | Conduit pipe outer/25.4mm, t=1.2mm PVC 34mm, t=4.7mm |
340 pcs 70pcs |
220 pcs 45pcs |
| Blade for metal (EY9PM13F) | SPC 450mm, t=1.6mm | 25 pcs | 18pcs |
| Blade for wood (EY9PW13C) | Squared Log 45x45mm Squared Log 2x10, 38x235mm Plywood 900mm t=12mm |
300pcs 280pcs 120pcs |
240pcs 190pcs 70pcs |
| Blade for wood (EY9PW13D) | Plywood 900mm t=5mm | 320pcs | 200pcs |
Technology
Optimum balance for greater control
To give best control and operator comfort, the EY45A2 has class leading ergonomic design. It has almost perfect weight balance horizontally and vertically. The better the balance, the better the control giving the user increased control and reduced fatigue.
Always best option - 3 way dust control system
Adaptable to working environments and restrictions, the EY45A2 offers an innovative 3 way dust control system : Dust extraction outlet, dust collection case or top ejection. This means that no matter what the application, the EY45A2 offers a suitable dust control option.
Easy straight cutting with LED and guide slot
The view for cutting is helped by a bright LED light that is focused on the guide slot in front of the blade. It illuminates automatically when the trigger is pulled to start the saw.
Protect battery from Overheating and Overdischarge
Battery cell sensor detects the overheating and overdischarging (discharge of the battery until voltage falls below a minimum threshold). To protect the battery, it will automatically cut the power to the motor and a warning lamp will flash on the control panel to notify the user.

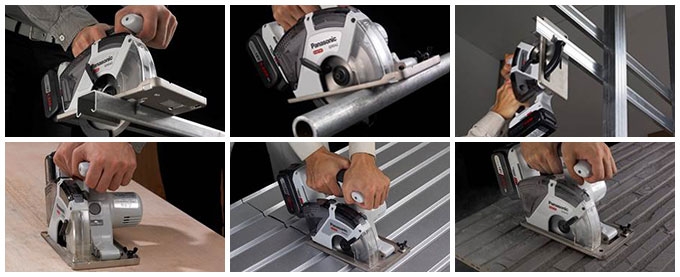

Efficient work in various applications
With the choice of a wood or metal blade, various application is available.
| Model | Type | Blade Size | Teeth | |
|---|---|---|---|---|
| EY9PW13C | Wood | 135mm | 24 | Standard accessory of EY45A2XW |
| EY9PW13D | Wood | 135mm | 48 | Optional accessary |
| EY9PM13E | Metal | 135mm | 30 | Standard accessory of EY45A2LJ2G / 45A2XM |
| EY9PM13F | Metal | 135mm | 50 | Optional accessory |
Delivery Info
Description
Cordless Multi Purpose Cutter
- New high-performance 5.0Ah Li-ion battery pack*
- 65min. usable and 80min. full charging
- Light weight 2.8kg (incl. battery)*
- Standard accessory (Blade for metal or wood)
- For metal, plastic and wood
- Transparent window for easy to see the cutting edge
- Electric speed control
- 3-way dust control system
- Ergonomic design
- Soft grip
- LED light
- Second battery pack*
| Model / Type | EY45A2LJ2G | EY45A2XM | EY45A2 XW |
|---|---|---|---|
| Voltage | 18V | 18V / 14.4V | 18V / 14.4V |
| Battery capacity accord. to IEC (technology) | 5.0Ah (Li-ion) | * | * |
| Charging time (usable / full) | 65 / 80min. | * | * |
| Speed at no load in rpm | 4.500 | * | * |
| Max. cutting depth | 46mm | * | * |
| Stroke | - | - | - |
| Blade size (outer diameter) | 135mm | * | * |
| Size (W x L x B) | 160 x 343 x 228mm | * | * |
| Weight (incl. battery) | 2.75kg | * | * |
| Standard accessories | 2 x battery EY9L54B Charger EY0L82B Blade for metal EY9PM13E incl. plastic box |
without battery without charger Blade for metal EY9PM13E without plastic box |
without battery without charger Blade for wood EY9PW13C without plastic box |
* XM-type (EY45A2XM) without battery and charger.
| Battery capacities | |||
|---|---|---|---|
| Voltage | 18V | 14.4V | |
| Model | EY45A2LJ2G | - | |
| Battery | EY9L54B(LJ) | - | |
| Blade for metal (EY9PM13E) | Conduit pipe outer/25.4mm, t=1.2mm PVC 34mm, t=4.7mm |
340 pcs 70pcs |
220 pcs 45pcs |
| Blade for metal (EY9PM13F) | SPC 450mm, t=1.6mm | 25 pcs | 18pcs |
| Blade for wood (EY9PW13C) | Squared Log 45x45mm Squared Log 2x10, 38x235mm Plywood 900mm t=12mm |
300pcs 280pcs 120pcs |
240pcs 190pcs 70pcs |
| Blade for wood (EY9PW13D) | Plywood 900mm t=5mm | 320pcs | 200pcs |
Technology
High performance with compact dimensions and universal application
EY45A2 Multi Purpose Cutter features a well balanced, lightweight and compact body that gives high performance cutting of multiple materials such as wood, metals and plastic.
Optimum balance for greater control
To give best control and operator comfort, the EY45A2 has class leading ergonomic design. It has almost perfect weight balance horizontally and vertically. The better the balance, the better the control giving the user increased control and reduced fatigue.
Always best option - 3 way dust control system
Adaptable to working environments and restrictions, the EY45A2 offers an innovative 3 way dust control system : Dust extraction outlet, dust collection case or top ejection. This means that no matter what the application, the EY45A2 offers a suitable dust control option.
Easy straight cutting with LED and guide slot
The view for cutting is helped by a bright LED light that is focused on the guide slot in front of the blade. It illuminates automatically when the trigger is pulled to start the saw.
Protect battery from Overheating and Overdischarge
Battery cell sensor detects the overheating and overdischarging (discharge of the battery until voltage falls below a minimum threshold). To protect the battery, it will automatically cut the power to the motor and a warning lamp will flash on the control panel to notify the user.
Efficient work in various applications
With the choice of a wood or metal blade, various application is available.
| Model | Type | Blade Size | Teeth | |
|---|---|---|---|---|
| EY9PW13C | Wood | 135mm | 24 | Standard accessory of EY45A2XW |
| EY9PW13D | Wood | 135mm | 48 | Optional accessary |
| EY9PM13E | Metal | 135mm | 30 | Standard accessory of EY45A2LJ2G / 45A2XM |
| EY9PM13F | Metal | 135mm | 50 | Optional accessory |
