| Model / Type | EY7410LA2S | EY7410LA1C |
|---|---|---|
| Voltage | 3.6V | 3.6V |
| Battery capacity accord. to IEC (technology) | 1.5Ah (Li-ion) | 1.5Ah (Li-ion) |
| Charging time (usable / full) | 15 / 30min. | 15 / 30min. |
| Speed at no load (low / high) in rpm | 200 / 600min-1 (rpm) | 200 / 600min-1 (rpm) |
| Max. torque (stalling / instant torque) | 1.5 / 4.4Nm | 1.5 / 4.4Nm |
| Clutch torque | Approx. 0.3 – 2.9Nm | Approx. 0.3 – 2.9Nm |
| Clutch stages | 21 | 21 |
| Torque per stage | Approx. 0.1Nm | Approx. 0.1Nm |
| Size (Ø x L in stick position x H in crease position) | 46 x 276 x 134mm | 46 x 276 x 134mm |
| Weight (incl. battery) | 0.5kg | 0.5kg |
| Standard accessories | 2 x battery EY9L10B charger EY0L10B incl. plastic box |
1 x battery EY9L10B without charger without plastic box |
* Applies to EY7410LA2S.
| Battery capacities | |||
|---|---|---|---|
| Voltage | 3.6V | ||
| Model | EY7410LA2S | ||
| Wood screws in soft wood | Ø 3.1 x 13mm | 600pcs | |
| Screws in sheet metal (pre-hole) | M5 x 8mm | 1.000pcs | |
| Holes in SPC | t = 1mm, Ø 2 | 85pcs | |

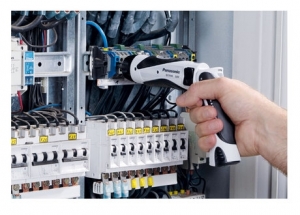

Cabinet installers, electricians, service engineers, production line, assembly work
Compact and easy to use
The ‘Auto shut off clutch’ extends battery and clutch life by immediately stopping rotation once selected torque setting is reached. With the LED light even in the dark areas for fastening screws can be clearly seen.
Delivery Info
| Model / Type | EY7410LA2S | EY7410LA1C |
|---|---|---|
| Voltage | 3.6V | 3.6V |
| Battery capacity accord. to IEC (technology) | 1.5Ah (Li-ion) | 1.5Ah (Li-ion) |
| Charging time (usable / full) | 15 / 30min. | 15 / 30min. |
| Speed at no load (low / high) in rpm | 200 / 600min-1 (rpm) | 200 / 600min-1 (rpm) |
| Max. torque (stalling / instant torque) | 1.5 / 4.4Nm | 1.5 / 4.4Nm |
| Clutch torque | Approx. 0.3 – 2.9Nm | Approx. 0.3 – 2.9Nm |
| Clutch stages | 21 | 21 |
| Torque per stage | Approx. 0.1Nm | Approx. 0.1Nm |
| Size (Ø x L in stick position x H in crease position) | 46 x 276 x 134mm | 46 x 276 x 134mm |
| Weight (incl. battery) | 0.5kg | 0.5kg |
| Standard accessories | 2 x battery EY9L10B charger EY0L10B incl. plastic box |
1 x battery EY9L10B without charger without plastic box |
* Applies to EY7410LA2S.
| Battery capacities | |||
|---|---|---|---|
| Voltage | 3.6V | ||
| Model | EY7410LA2S | ||
| Wood screws in soft wood | Ø 3.1 x 13mm | 600pcs | |
| Screws in sheet metal (pre-hole) | M5 x 8mm | 1.000pcs | |
| Holes in SPC | t = 1mm, Ø 2 | 85pcs | |
Cabinet installers, electricians, service engineers, production line, assembly work
Compact and easy to use
The ‘Auto shut off clutch’ extends battery and clutch life by immediately stopping rotation once selected torque setting is reached. With the LED light even in the dark areas for fastening screws can be clearly seen.
